Hydrogen Furnace Series Technical Parameter

Update: 2015/2/9      View:
  • Brand:
  • Type:
  • Price:     RMB
  • Promotion:     RMB ( 0 Customers Bought)
  • Order Online   Add to favorites
Introduction

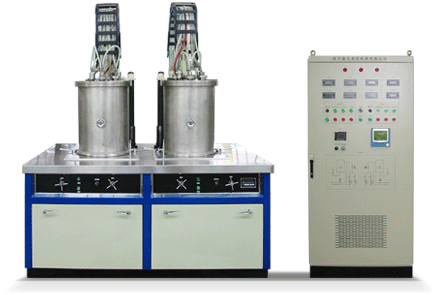

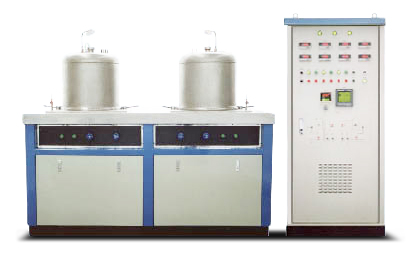

L Series Twin-set Vertical Hydrogen Furnace L Series Twin-set Vertical Hydrogen Furnace


Main specifications

Model

Working positions
/Structure

Effective volume(mm)

Maximum temperature

Temperatureuniformity

Power
(Kw.)

L2112Ⅱ

Twin-set vertical

Φ250×250 1200 ±7.5℃ 25
L2112Ⅱ-1
Twin-set vertical
Φ270×300
1200℃
±7.5℃
30
L2112Ⅱ-2
Twin-set vertical
Φ300×350
1200℃
±7.5℃
35
L2112Ⅱ-3
Twin-set vertical
Φ350×300
1200℃
±7.5℃
42
L2112Ⅱ-4
Twin-set vertical
Φ350×500
1200℃
±10℃
45
L1112Ⅱ

Single-set vertical

Φ420×400
1200℃
±10℃
60
L1112Ⅱ-1

Single-set vertical

Φ500×1000
1200℃
±10℃
160
L1112Ⅱ-2

Single-set vertical

Φ550×750
1200℃
±10℃
100
L2113Ⅱ
Twin-set vertical
Φ200×300
1250℃
±7.5℃
20
L2113Ⅱ-1
Twin-set vertical
Φ270×300
1250℃
±7.5℃
40
L2113Ⅱ-2
Twin-set vertical
Φ300×400
1250℃
±7.5℃
50
L2113Ⅱ-3
Twin-set vertical
Φ350×450
1250℃
±7.5℃
70
L1113Ⅱ

Single-set vertical

Φ420×750
1250℃
±10℃
80
L2113Ⅱ-4
Twin-set vertical
Φ250×280
1300℃
±7.5℃
30
L2113Ⅱ-5
Twin-set vertical
Φ300×400
1300℃
±7.5℃
50
L2113Ⅱ-6
Twin-set vertical
Φ350×450
1300℃
±10℃
60
L1113Ⅱ-1

Single-set vertical

Φ420×400
1300℃
±10℃
60
L1113Ⅱ-2

Single-set vertical

Φ500×600
1300℃
±10℃
120
L2116Ⅱ
Twin-set vertical
Φ200×250
1600℃
±7.5℃
35
L2116Ⅱ-1
Twin-set vertical
Φ250×300
1600℃
±7.5℃
40
L2116Ⅱ-2
Twin-set vertical
Φ250×350
1600℃
±10℃
45
L2116Ⅱ-3
Twin-set vertical
Φ270×350
1600℃
±7.5℃
50
L2116Ⅱ-4
Twin-set vertical
Φ300×350
1600℃
±7.5℃
70
L2116Ⅱ-5
Twin-set vertical
Φ300×500
1600℃
±10℃
75

L1116Ⅱ

Single-set vertical

Φ500×600
1600℃
±10℃
120

L1218Ⅱ

Single-set horizontal

Φ60×200
1800℃

20

L1220Ⅱ

Single-set horizontal

35×15×150
2000℃

25

L1122Ⅱ

Single-set vertical

Φ80×150
2200℃

75




Single-set Vertical Hydrogen Furnace

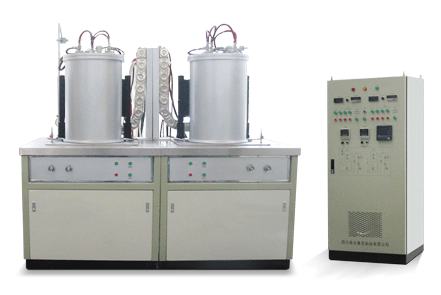

Twin-set vertical hydrogen furnace
(the power is supplied from the top
of the furnace)


The products can be specially designed and manufactured to meet the clients’ different demands of working temperature and effective volume.

Characteristics:

Control mode: manual and automatic
●Automatic temperature control accuracy±1℃
The temperature is automatically controlled by segmented program and temperature controller could store several program. Temperature is able to be increased in accordance with technical curve, meeting diversified technical demands.
Different kinds of temperature controllers can be chosen to meet clients’ own requirements.
Heating is operated by magnestat transformer, transformer and power regulator reducing the pollution of the electricity power system.
Excellent allocation enables hydraulic pressure system to have smooth elevation, no leakage and low noise.
Water and atmosphere pressure are controlled by the pressure and the alarm will be given with acousto-optic display. Flow alarm is controlled according to the clients’ requirements.
The equipment has recording instrument which records and memories one-month service conditions.
With stainless steel as its material, the table-board features with pleasing spray-paint color and elegant appearance.
